Temperature Resistance Fabric Expansion Joints To Avoid Mechanical Loads To Protect Against Abrasion
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
व्हाट्सएप:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| तापमान प्रतिरोध | -50 C डिग्री से 550 C डिग्री तक | वजन | 600 जी / एम 2 |
|---|---|---|---|
| मोटाई | 0.45 मिमी | कोटिंग | 2 तरफ Neoprene रबर |
| चौड़ाई | 1.5 मीटर या अनुकूलित आकार में काटना | रंग | काला |
| रोल की लंबाई | 50 मीटर | मुख्य बाजार | मध्य पूर्व |
| प्रयोग | विस्तार संयुक्त / लचीली वाहिनी | ||
| प्रमुखता देना | Temperature Resistance Fabric,Against Abrasion Temperature Resistance Fabric |
||
उत्पाद विवरण

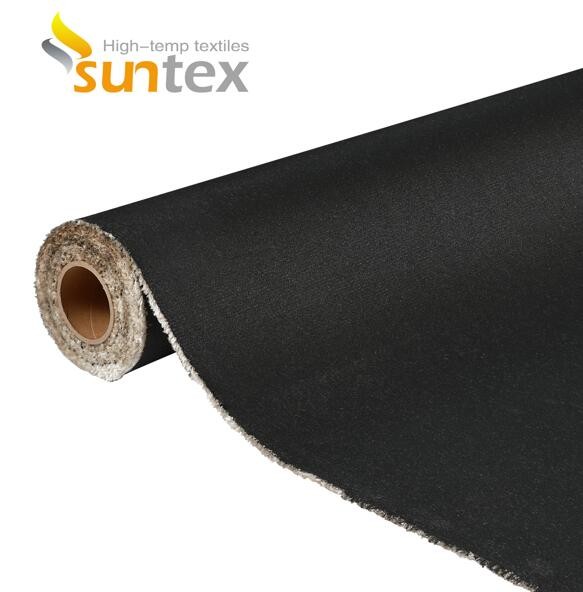

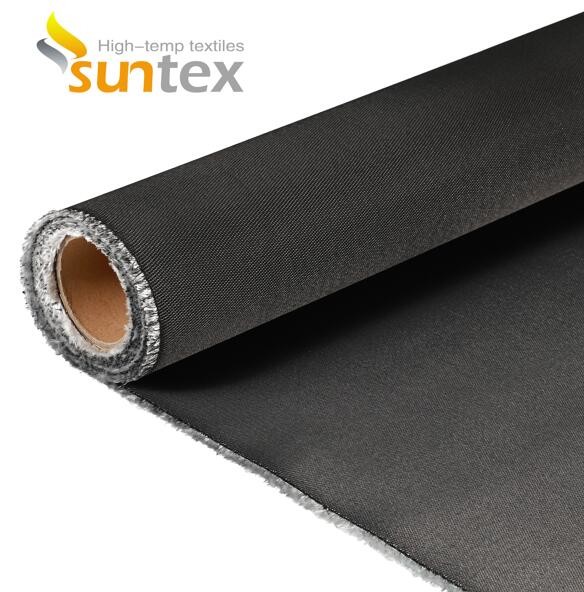

Black Expansion Joint Pipe Fabrics Neoprene Glass Fabre Fabric 600 g
Description:
GF431P-NE245-4005 is a medium weight fiberglass fabric coated with a high quality, fire retardant neoprene rubber. This product is designed for the manufacture of removable, reusable insulation pads, jacket and mattresses. The material is soft and pliable and easy to sew.
This product is particularly suitable for the manufacture of compensators and expansion covers
Fabric bellows are extremely flexible and can be made from a variety of special woven fabrics coated or laminated with selected elastomers or fluoropolymers. Fabric expansion joints are used to insulate, to avoid mechanical loads and to protect against abrasion. They offer advantages for the pipe work designer as they can absorb movements simultaneously in several directions. Further, they have almost no reactive forces and require little space. Fabric expansion joints are easy to customise to suit existing operating conditions and are easy to transport and install. In comparison to metallic expansion joints fabric offers almost unlimited flexibility, giving the pipe work designer more options.
Fabric expansion joints are installed in systems operating with low pressure and dry media.
Parameter List:
| BASE FABRIC | Base fabric style No. GF431P | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1﹡2 | ECG 75 1/2 | |
| Weft | EC9 68 1﹡2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| COATED FABRIC | Coating style No. NE245-4005 | ||
| Coating | Neoprene rubber , two sides | ||
| Weight | 600 ± 30 g/m2 | 17.35 ± 0.88 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.47 ± 0.02 mm | 0.019 ± 0.0008 inch | ASTM D1777-96 |
| Color | Black | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Neoprene rubber coating up to 1500C (3600F) |
||
Typical Applications:
Air condition systems
Flexible Connector
Expansion Joint Ducts
Insulation Sleeves
Fabric Shield
Advantage:
- Abbrasion resistant
- Fiberglass cloth is good and fire resistant against hear material, used as heat insulation, electrical insulation materials and also made into other products. It with metallic can extensively apply to friction materials.
- Competitive prices based on same quality because we are manufacture and has our own factory
- Guarantee samples quality same as mass production quality
- Fiberglass Yarn is the excellent substitute for asbestos.
